| Model | WVC-300W |
| Maximum input power | 330W |
| Output voltage mode | 120/230V |
| PV Open circuit voltage | 33-54VOC |
| Operating voltage range | 22-60V |
| Starting voltage range | 22-60V |
| Short-circuit current | 14A |
| Maximum working current | 11.5A |
| Output parametars 230V | |
| Output peak power | 330W |
| Rated output power | 300W |
| Output current | 1.3A |
| AC voltage range | 185-265V |
| AC frequency range | 47-52/57-62Hz |
| Power factor | >95% |
| Number of branch connections | 30PCS ( Single) |
| Output efficiency | |
| Static MPPT efficiency | 99,50% |
| Max output efficiency | 95% |
| Loss od power at night | <0.5W |
| Total current harmonics | <5% |
| Appearance and technical features | |
| Temperature range | -40°C to +65°C |
| Size(LxWxH) | 165x176x38 mm |
| Net amount | 0.8kg |
| Waterproof grade | IP65 NEMA3R |
| Heat dissipation mode | Self-cooling |
| Communication mode | 433MHz/WiFi/lot |
| Power transmission mode | Reverse transmission, Load priority |
| Monitoring system | Mobile phone APP, Browser |
| Electromagnetic compatibility | EN50081.Part1 EN50082. Part1.CSA.STD.C22.2 No.107.1 |
| Power grid | EN61000-3-2 EN62109.UL STD.1741 |
| Power grid detection | DIN VDE 0126 IEEE STD. 1547.1547.1 and 1547.A |
| Certificate | CEC, CE, INMETOR, ETL, Patented technology |

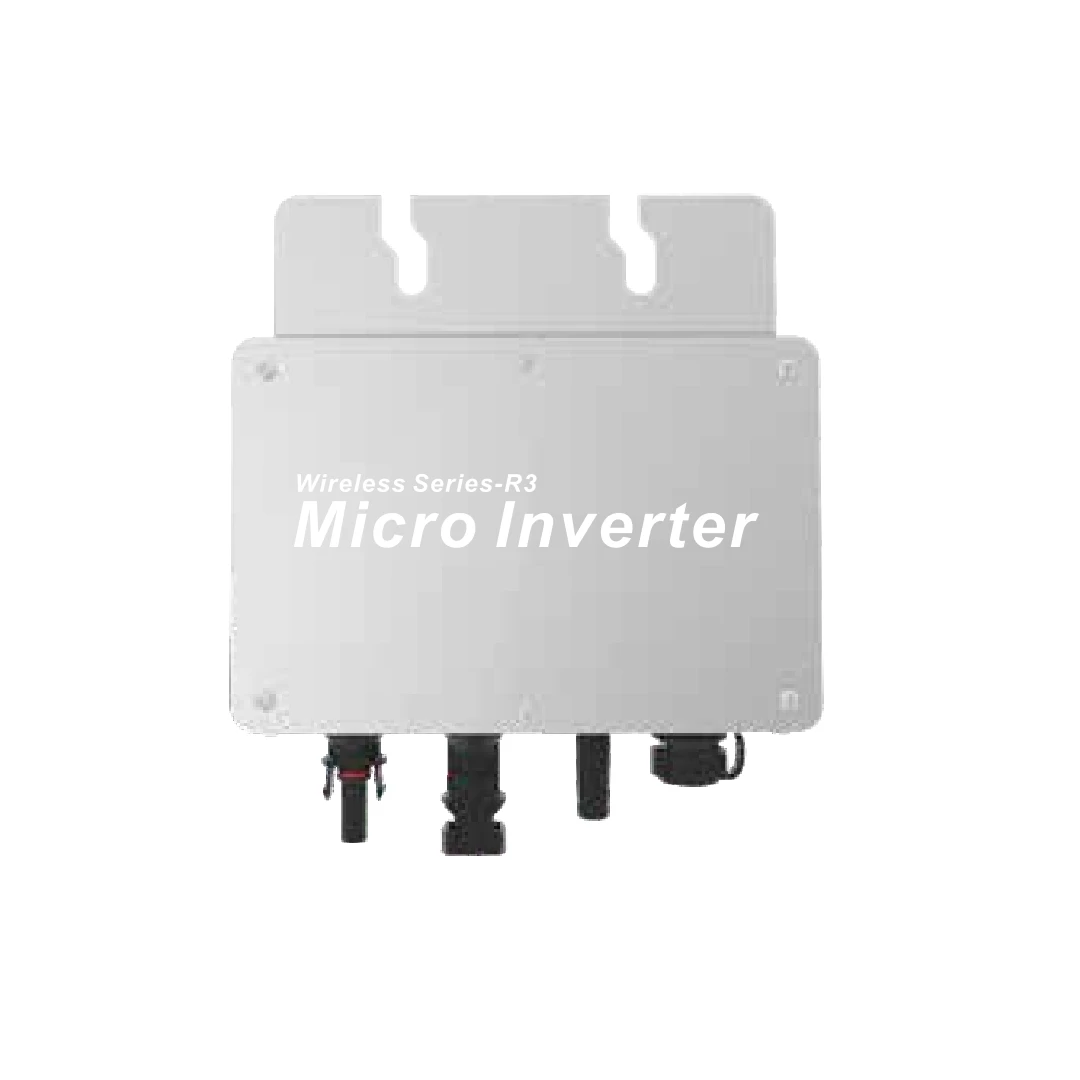

Micro inverter fixing hole
Independent ground connection to fixed holes
30-54V DC Input connected to PV module
Status indicator
433MHz Antenna
AC output terminal, connect previous/next/connect to grid access point
